Beam Load Cell BL (BL-Ex)

Robust digital beam load cell in a hygienic (aseptic) design for dynamic weighing, process weighing, filling, packaging and general weighing in food, pharma and life science applications. The new hygienic EHEDG compliant design in stainless steel is without gaps or edges for easy cleaning in order to minimize the risk of bacteria growth. The BL/BL-Ex load cell is OIML and NTEP certified and certified for installation in ATEX (Ex) and IECEx environment in Zone 1, 2, 21 and 22.

Type: BL (Non-ATEX) BL-Ex (ATEX) Capacity (Emax): 10, 20, 30, 50, 100, 150, 250, 500, 1000 kg Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025% Overload Tolerance: 500% at 5kg, 200% at 1000 kg capacity

Request a quote Print datasheet

Eilersen hygienic beam load cell shown with 100kg mounting kit

Eilersen hygienic beam load cell shown with 500kg mounting kit

Eilersen process weighing using digital robust beam load cells

Capacitive hygienic load cells installed under mixers

Special Features

Developed and manufactured in Denmark
Hygienic (aseptic) design without gaps or edges for easy cleaning to minimize the risk of bacteria growth
High tolerance of up to 1,000% overload
Robust capacitive technology
Hermetically sealed to IP68
Electropolished stainless steel 1.4542 (17-4 PH)
ATEX and IECEx certified (Zone 1, 2, 21, 22)
Withstands welding voltages and ESD

High accuracy, high resolution
Capacity (Emax): 10, 20, 30, 50, 100, 150, 250, 500, 1000 kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Load cell cable length up to 100 meters
Load cell calibration independent of cable length
Replaceable load cell cable
Easy mechanical and electrical installation
OIML and NTEP approvals

Documentation

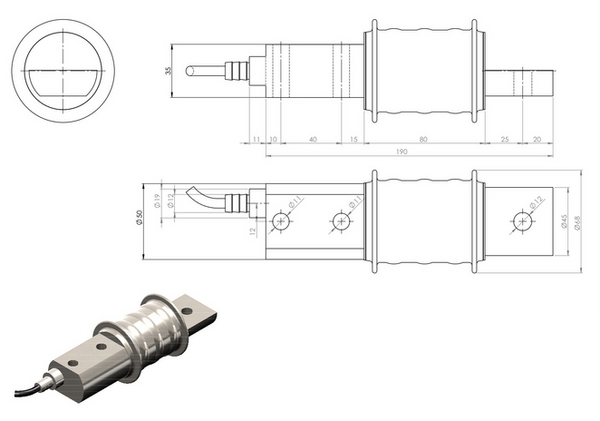

Dimensions (mm)

Specifications

Parameter	Unit	0.10%	0.05%	0.025%*
Rated capacity (E_max)	kg	10, 20, 30, 50, 100, 150, 250, 500, 800, 1000
Safe overload limit	% of E_max	200 to 1000
Safe overload limit	% of E_max	300 to 1000
Combined Accuracy	% of E_max	0.100	0.050	0.025
Repeatability	% of E_max	0.018	0.015	0.010
Hysteresis	% of E_max	0.033	0.025	0.017
Creep 30 min.	% of E_max	0.035	0.025	0.017
Temperature effect on zero	% of E_max	0.050	0.035	0.035
Temperature effect on sensitivity	% /10°C	0.050	0.035	0.035
Compensated temperature range	°C	-10 to 50
Operating temperature range	°C	-50 to 60
Deflection at E_max	mm	0.20
Measuring rate	Hz	500
Supply	Vdc	24Vdc ±5%
Internal resolution	Bit	24
Material		Stainless Steel 17-4 PH and AISI 316
Protection		IP68
Cable		6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum cable length	m	100
Weight	kg	2.5
Output options		EtherNet/IP, PROFINET, EtherCAT, Profibus DP, Modbus TCP/IP, DeviceNet, RS485, 4-20mA, 0-10Vdc

* Higher accuracies available on request up to C4

Applications

Dynamic weighing
Process weighing
Tanks and vessels
Vibration sorters
Filling and dosing
Platform scales
Packaging machines
Hopper scales
Belt scales
Conveyor scales
Big-bag equipment
On-board weighing

Options

ATEX and IECEx (Zone 1, 2, 21, 22) version type BL-Ex
ATEX II 2G Ex ia IIC T6 Gb / ATEX II 2D Ex IIIC T85°C Db
Mounting kits available
Load cell cable length 10, 20, 50 or 100 meters
Mud resistant and Halogen free cables for offshore installation
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure optimal performance, being factory-calibrated and compensated for reliability and up to 99.99% accuracy, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. Using pre-calibrated, plug-and-play digital load cells, Eilersen load cells can be supplied with up to 100 meters load cell cables, which can be shortened without affecting the load cell calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics enable the monitoring of individual load cells, allowing any issues to be quickly flagged for easy troubleshooting. A unique feature is that the Eilersen load cell cables can be replaced on-site without need for re-calibration

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Connectivity

Eilersen digital load cells support multiple fieldbus interfaces, including PROFINET, Profibus DP, EtherCAT, Ethernet/IP, Modbus TCP/IP, DeviceNET, RS485, 4-20mA, and 0-10Vdc
