DIGITAL LOAD CELLS

Our high-quality digital load cells provide advantages for all industries. Through our patented capacitive technology, you get superb accuracy and load cells that tolerate up to ten times overload. Pre-calibration makes installation and commissioning fast and simple. With no need for mounting devices, they are easy to clean, making them the perfect weighing solution for food, pharma and biotech. Eilersen digital load cells are available in capacities up to 500 tons, in accuracy up to OIML C6, and in ATEX and IECEx certified versions.

NEW capacitive load cells with integrated lift-off protection (Patent Pending) for installations e.g. in areas with seismic activity, outdoor silos and high shear mixers. These robust digital compression load cells in EHEDG compliant design are produced in electropolished stainless steel and hermetically sealed to IP68. The load cells type DLC-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22)

Type:

DLC (Non-ATEX) DLC-Ex (ATEX)

Capacity (Emax):

50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 300% of rated capacity

NEW hygienic (aseptic) compression load cell types CL and CL-Ex in EHEDG compliant design. These robust digital compression load cells are produced in electropolished stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The load cells can be supplied with a hygienic base plate in AISI316. The compression load cell type CL-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22)

Type:

CL (Non-ATEX) CL-Ex (ATEX)

Capacity (Emax):

50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 500% of rated capacity

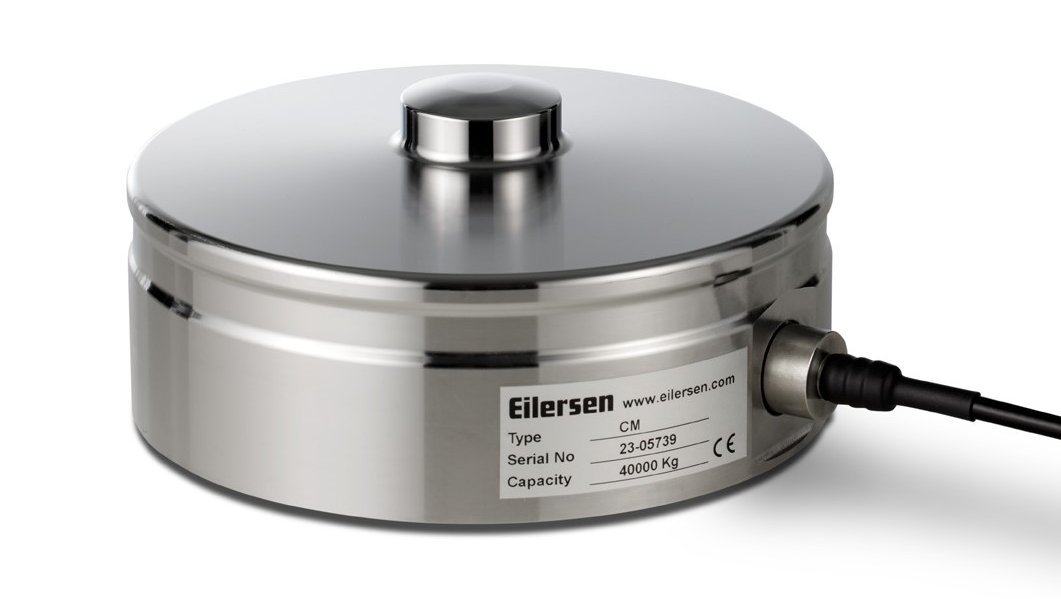

NEW hygienic (aseptic) compression load cell types CM and CM-Ex in EHEDG compliant design. These robust digital compression load cells are produced in electropolished stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The load cells can be supplied with a hygienic base plate in AISI316. The compression load cell type CM-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22)

Type:

CM (Non-ATEX) CM-Ex (ATEX)

Capacity (Emax):

6000, 8000, 10000, 12000, 15000, 20000, 25000, 30000, 40000, 50000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 300% of rated capacity

Compact digital hygienic beam load cell for dynamic weighing, multihead scales, combination weighers, small tanks and vessels. The hygienic design of the HBL load cell is unique and ensures an easy to clean installation and a very high resonance frequency (spring rate) for rapid dynamic weighing. The hygienic load cell type HBL-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22)

Type:

HBL

Capacity (Emax):

5, 10, 20, 30, 50, 100kg

Accuracy:

Industrial 0.025% Precision 0.015% High Precision 0.010%

Overload Tolerance:

Up to 1000% of rated capacity

The robust digital single point load cell type XBL in stainless steel is hermetically sealed to IP68K. The load cell is developed for machine builders who have tasks within dynamic weighing, multihead weighers, factory automation, packaging machines, filing and dosing, flow measurement, bench and platform scales, conveyor scales, process weighing and check weighers. ATEX (Ex) and IECEx versions are available

Type:

XBL

Capacity (Emax):

3, 5, 10, 15, 20, 30, 50, 100kg

Accuracy:

Industrial 0.025% Precision 0.015% High Precision 0.010%

Overload Tolerance:

Up to 1000% of rated capacity

The robust digital single point load cell type SPSX is produced in stainless steel and hermetically sealed to IP69K. The main applications are graders, multihead weighers, checkweighers, filling machines, belt scales, platform scales, bench scales etc. The SPSX load cell is OIML and NTEP approved. ATEX (Ex) and IECEx approved versions for installation in ATEX zone are also available

Type:

SPSX

Capacity (Emax):

5, 10, 20, 30, 50, 100, 150, 200kg

Accuracy:

Industrial 0.025% Precision 0.015% High Precision 0.010%

Overload Tolerance:

Up to 1000% of rated capacity

The robust digital single point load cell type SPSXL in stainless steel is hermetically sealed to IP69K. The main applications are graders, checkweighers, filling and dosing equipment, belt scales, platform scales, bench scales etc. ATEX (Ex) and IECEx approved versions are available

Type:

SPSXL

Capacity (Emax):

20, 50, 100, 150, 200, 250kg

Accuracy:

Industrial 0.025% Precision 0.015%

Overload Tolerance:

Up to 1000% of rated capacity

Robust digital beam load cell in a hygienic (aseptic) design for dynamic weighing, process weighing, filling, packaging and general weighing in food, pharma and life science applications. The new hygienic EHEDG compliant design in stainless steel is without gaps or edges for easy cleaning in order to minimize the risk of bacteria growth. The BL/BL-Ex load cell is OIML and NTEP certified and certified for installation in ATEX (Ex) and IECEx environment in Zone 1, 2, 21 and 22.

Type:

BL (Non-ATEX) BL-Ex (ATEX)

Capacity (Emax):

10, 20, 30, 50,100, 150, 250, 500, 1000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

500% at 5kg, 200% at 1000kg capacity

Compact digital beam load cell for dynamic weighing, web tension measurement, process weighing, force measurement and general industrial weighing. This load cell is a short version of the BL beam load cell and produced in stainless steel and laser welded (IP68)

Type:

SBL

Capacity (Emax):

1, 2, 5, 10, 20, 30, 50kg

Accuracy:

High Precision 0.025%

Overload Tolerance:

500% at 2kg, 200% at 100kg capacity

Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. The BM-Ex 70 load cell can be used in ATEX (Ex) IECEx and non-ATEX applications

Type:

BM 70 (Non-ATEX) BM-Ex 70 (ATEX)

Capacity (Emax):

1000, 2000, 3000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 500% of rated capacity

Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. The BM-Ex 80 load cell can be used in ATEX (Ex) IECEx and non-ATEX applications

Type:

BM 80 (Non-ATEX) BM-Ex 80 (ATEX)

Capacity (Emax):

5000, 6000, 7000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 500% of rated capacity

Robust digital ATEX and IECEx certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The CH-Ex load cell can be used in ATEX (Ex) IECEx and non-ATEX applications

Type:

CH100 (Non-ATEX) CH-Ex100 (ATEX)

Capacity (Emax):

100tons

Accuracy:

Industrial 0.25%

Overload Tolerance:

Up to 300% of rated capacity

Robust digital ATEX and IECEx certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The CH-Ex load cell can be used in ATEX (Ex) IECEx and non-ATEX applications

Type:

CH500 (Non-ATEX) CH-Ex500 (ATEX)

Capacity (Emax):

200, 300, 400, 500tons

Accuracy:

Industrial 0.25%

Overload Tolerance:

Up to 300% of rated capacity

Compact digital beam load cell for dynamic weighing, web tension measurement, process weighing, force measurement and general industrial weighing. This load cell is a short version of the SD beam load cell and produced in stainless steel and laser welded (IP68)

Type:

SDC

Capacity (Emax):

1, 2, 5, 10, 20, 30, 50, 100kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

500% at 2kg, 200% at 100kg capacity

The robust digital tension load cell type TM is produced in stainless steel and used for weighing suspended vessels, in cranes, lifts and for measuring forces in heavy duty equipment. ATEX versions are available

Type:

TM

Capacity (Emax):

2000, 5000, 10000kg

Accuracy:

Industrial 0.10%

Overload Tolerance:

Up to 1000% of rated capacity

The robust digital load cell type SDLX is produced in stainless steel and designed for the extremely though environment in lift systems for waste management with shock loads and vibrations. The load cell can also be used in general industrial weighing applications. OIML certified to class C3 according to OIML R60

Type:

SDLX

Capacity (Emax):

300kg

Accuracy:

0.025% C3

Overload Tolerance:

Up to 500% of rated capacity

Robust digital OIML certified beam load cell for dynamic weighing, process weighing and general industrial weighing. Application examples are belt scales, platform scales, small vessels, filling machines, process equipment etc. OIML certified (up to C6, MI10) according to OIML R60

Type:

SD

Capacity (Emax):

2, 5, 10, 20, 30, 50, 100, 150, 250, 500, 1000kg

Accuracy:

0.10% C1, 0.05% C2, 0.025% C3 og op til OIML klasse C6 (MI10)

Overload Tolerance:

500% at 5kg, 200% at 1000kg capacity

Robust digital heavy duty beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. OIML certified (up to C5) according to R60

Type:

SDM70

Capacity (Emax):

1000, 2000, 3000kg

Accuracy:

0.10% C1, 0.05% C2, 0.025% C3 og op til OIML klasse C5

Overload Tolerance:

Up to 500% of rated capacity

Robust digital heavy duty beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. OIML certified (up to C5) according to R60

Type:

SDM80

Capacity (Emax):

5000, 6000, 7000kg

Accuracy:

0.10% C1, 0.05% C2, 0.025% C3 og op til OIML klasse C5

Overload Tolerance:

Up to 500% of rated capacity

Robust digital compression load cell produced in stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing

Type:

MD

Capacity (Emax):

50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

500% at 50kg, 200% at 5000kg capacity

Robust digital compression load cell produced in stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing

Type:

FD

Capacity (Emax):

6000, 8000, 10000, 12000, 15000, 20000, 25000, 50000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

400% at 6tons, 200% at 50tons capacity

Robust digital heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications

Type:

GDS100

Capacity (Emax):

100tons

Accuracy:

Industrial 0.25%

Overload Tolerance:

Up to 300% of rated capacity

Robust digital heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications

Type:

GDS500

Capacity (Emax):

200, 300, 400, 500tons

Accuracy:

Industrial 0.25%

Overload Tolerance:

Up to 300% of rated capacity

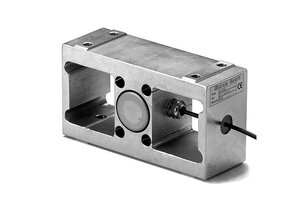

The robust digital TL 101A and TL 101A-ST load cells are designed primarily for measuring web tension. The load cell type TL 101A-ST offers extra safety in applications with heavy rollers and increased temperature compensation. The TL 101A load cell has same dimensions as the ABB PFTL 101A

Type:

TL 101A or TL 101A-ST

Capacity (Emax):

500N, 1, 2, 5kN

Accuracy:

Industrial 0.25%, Precision 0.10%

Overload Tolerance:

Up to 1000% of rated capacity

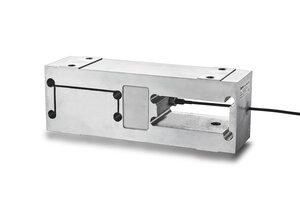

The robust digital TL 101B load cell is a heavy duty version designed primarily for measuring web tension. The TL 101B load cell has same dimensions as the ABB PFTL 101B load cell

Type:

TL 101B

Capacity (Emax):

2, 5, 10, 20kN

Accuracy:

Industrial 0.25%, Precision 0.10%

Overload Tolerance:

Up to 1000% of rated capacity

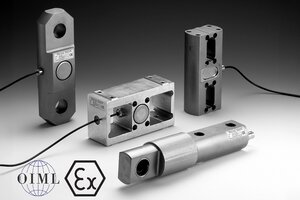

Eilersen designs customized robust digital load cells for industrial applications like on-board truck weighing, crane scales, offshore installations, web tension measurement and heavy duty applications. Eilersen also develops and produces robust load cells for specific customer applications. OIML and ATEX certified versions are available

Type:

Customized Digital Load Cells

Capacity (Emax):

Bending beam load cells up to 50tons. Compression load cells up to 500tons. Tension load cells up to 100tons. Web tension measurement up to 100kN

Accuracy:

Depends on load cell and application

Overload Tolerance:

Up to 1000% of rated capacity

Robust digital ATEX certified beam load cell for dynamic weighing, process weighing and general industrial weighing. Application examples are belt scales, platform scales, small vessels, filling machines, process equipment etc. in ATEX (Ex) environment. The load cell can also be used in non-ATEX (ex) rated area

Type:

BBLA (ATEX) BBL (Non-ATEX)

Capacity (Emax):

2, 5, 10, 20, 30, 50,100, 150, 250, 500, 1000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

500% at 5kg, 200% at 1000kg capacity

Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. The BBMA70 load cell can be used in ATEX (Ex) and non-ATEX applications

Type:

BBMA70 (ATEX) BBM70 (Non-ATEX)

Capacity (Emax):

1000, 2000, 3000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 500% of rated capacity

Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. The BBMA80 load cell can be used in ATEX (Ex) and non-ATEX applications

Type:

BBMA80 (ATEX) BBM80 (Non-ATEX)

Capacity (Emax):

5000, 6000, 7000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 500% of rated capacity

Robust digital ATEX certified compression load cell produced in stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The DLA compression load cell can be used in ATEX (Ex) and non-ATEX applications

Type:

DLA (ATEX) DL (Non-ATEX)

Capacity (Emax):

50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 500% of rated capacity

Robust digital ATEX certified compression load cell produced in stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The DMA compression load cell can be used in ATEX (Ex) and non-ATEX applications

Type:

DMA (ATEX) DM (Non-ATEX)

Capacity (Emax):

6000, 8000, 10000, 15000, 25000, 50000kg

Accuracy:

Industrial 0.10%, Precision 0.05%

Overload Tolerance:

Up to 400% of rated capacity

Robust digital ATEX certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The DHA100 load cell can be used in ATEX (Ex) and non-ATEX applications

Type:

DHA100 (ATEX) DH100 (Non-ATEX)

Capacity (Emax):

100tons

Accuracy:

Industrial 0.25%

Overload Tolerance:

Up to 300% of rated capacity

Robust digital ATEX certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The DHA500 load cell can be used in ATEX (Ex) and non-ATEX applications

Type:

DHA500 (ATEX) DH500 (Non-ATEX)

Capacity (Emax):

200, 300, 400, 500tons

Accuracy:

Industrial 0.25%

Overload Tolerance:

Up to 300% of rated capacity

Robust high-quality digital load cells

Digital load cells from Eilersen provide the most robust and reliable weighing solution on the market.

All our digital load cells tolerate high overloads, sideloads and torsion. Produced in stainless steel and hermetically sealed to IP68, Eilersen digital load cells are the preferred weighing solution for tough industrial applications in all industries.



Accuracy up to 99.99%
Accuracy and reliability are two of the most important factors when choosing a weighing solution. Eilersen digital load cells are factory calibrated and compensated to ensure the highest level of accuracy up to 99.99%.



Easy to install
Installation of Eilersen digital load cells is fast and easy. Our patented capacitive technology means there is no need for mounting devices, which makes your mechanical installation simple.

The electrical installation is simply plug-and-play. All our digital load cells are pre-calibrated, which eliminates the need for onsite calibration.

The high overload tolerance allows for in-factory installation of the digital load cells in OEM equipment.

Eilersen digital load cells can be equipped with up to 100 meter load cell cable, and the cable length has no influence on the load cell calibration. You can even replace cables with no need for re-calibration.



No regular maintenance needed
Digital load cells from Eilersen do not require regular maintenance. The load and status of each individual load cell can be monitored with the integrated load cell diagnostics feature. Should maintenance be required, the integrated system will alert users for fast and easy troubleshooting.



OIML and ATEX
Eilersen digital load cells can be supplied in OIML and ATEX/IECEx certified versions (zone 1, 2, 21, 22).



Field bus interfaces
Eilersen digital load cells are available with a wide range of fieldbus interfaces including:

  • Profibus DP

  • PROFINET

  • EtherCAT

  • Ethernet IP

  • Modbus TCP/IP

  • 4-20mA

  • 0-10VDC
