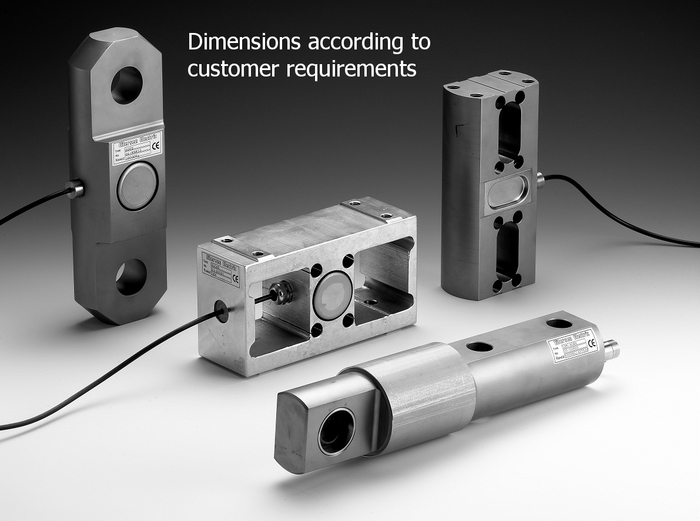

Customized Digital Load Cells

Eilersen designs customized robust digital load cells for industrial applications like on-board truck weighing, crane scales, offshore installations, web tension measurement and heavy duty applications. Eilersen also develops and produces robust load cells for specific customer applications. OIML and ATEX certified versions are available.

Type: Customized Digital Load Cells Capacity (Emax): Bending beam load cells up to 50 tons. Compression load cells up to 500 tons. Tension load cells up to 100 tons. Web tension measurement up to 100 kN Accuracy: Depends on load cell and application Overload Tolerance: Up to 1000% of rated capacity

Request a quote Print datasheet

Eilersen customized single point load cell

Heavy duty compression load cells example

Special Features

Made in Denmark
Robust capacitive technology
Patented high reliability capacitive sensor
High tolerance of up to 1000% overload
Stainless steel 1.4542 (17-4 PH)
Laser welded with Duplex 1.4462 stainless steel
Hermetically sealed to IP68
High accuracy, High resolution
Digital filters
Cable length up to 100 meters
Calibration independent of cable length
Replaceable load cell cable

Capacity (Emax):
Bending beam load cells up to 50 tons
Compression load cells up to 500 tons
Tension load cells up to 100 tons
Web tension measurement up to 100 kN
Accuracy: Depends on load cell and application
Easy mechanical and electrical installation
Withstands welding voltages and ESD
Optional special load cell cable
Optional accuracy according to OIML R60
Optional ATEX version (Zone 1, 2, 21, 22)

Documentation

Dimensions (mm)

Specifications

Parameter	Unit	Up to 0.010%
Rated capacity (E_max)	kg	From 1 kg to 500 ton
Safe overload limit	% of E_max	Up to 1000
Safe sideload limit	% of E_max	Up to 1000
Combined accuracy	% of E_max	Up to 0.010%
Repeatability	% of E_max	0.02
Hysteresis	% of E_max	0.04
Creep	% of E_max	0.03
Compensated temperature range	°C	-10 to 100
Operating temperature range	°C	-50 to 100
Measuring rate	Hz	Up to 500
Supply	Vdc	24VDC ±5%
Internal resolution	bit	24
Material		Stainless steel
Protection		IP68/IP69K
Cable		Standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum load cell cable length	m	100
Weight	kg	According to specifications
Output options		EtherNet/IP, PROFINET, EtherCAT, Profibus DP, Modbus TCP/IP, DeviceNet, RS485, 4-20mA, 0-10Vdc

Applications

Dynamic weighing
Process weighing
Tanks and vessels
Vibration sorters
Filling and dosing
Platform scales
Packaging machines
Hopper scales
Belt scales
Conveyor scales
Big-bag equipment
On-board weighing
Web tension control
Tension measurement
Offshore/Marine applications
Force measurement
Mobile weighing
Heavy duty applications

Options

Load cell capacity
Load cell dimensions
Load cell material
Epoxy or other coating
Load cell cable type and length
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
Load cell accuracy according to OIML R60
Load cell ATEX version (Zone 1, 2, 21, 22)

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure optimal performance, being factory-calibrated and compensated for reliability and up to 99.99% accuracy, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. Using pre-calibrated, plug-and-play digital load cells, Eilersen load cells can be supplied with up to 100 meters load cell cables, which can be shortened without affecting the load cell calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics enable the monitoring of individual load cells, allowing any issues to be quickly flagged for easy troubleshooting. A unique feature is that the Eilersen load cell cables can be replaced on-site without need for re-calibration

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Connectivity

Eilersen digital load cells support multiple fieldbus interfaces, including PROFINET, Profibus DP, EtherCAT, Ethernet/IP, Modbus TCP/IP, DeviceNET, RS485, 4-20mA, and 0-10Vdc
