ATEX / IECEx Certified Power Supply 4051A

ATEX and IECEx certified (zone 1, 2, 21, 22) power supply type 4051A used for supplying 4XXXA interface modules when used in ATEX / IECEx rated applications. The 4051A power supply and 4XXXA interface module must be installed in safe area i.e. outside the ATEX zone

Type:

4051A

Interface:

ATEX / IECEx power supply

Special Features
Documentation
Dimensions (mm)
Specifications
Applications
Options
Special Features
  • Made in Denmark
  • ATEX and IECEx certified power supply for Eilersen digital weighing modules type 4XXXA
  • For hazardous applications in ATEX / IECEx Zone 1, 2, 21 or 22
  • The power supply type 4051A and module type 4XXA must be installed outside the hazardous zone
  • Small Form Factor
  • Input: Standard power supply 24 Vdc, 1A
  • Output: Safe 24 Vdc, 0.2A output

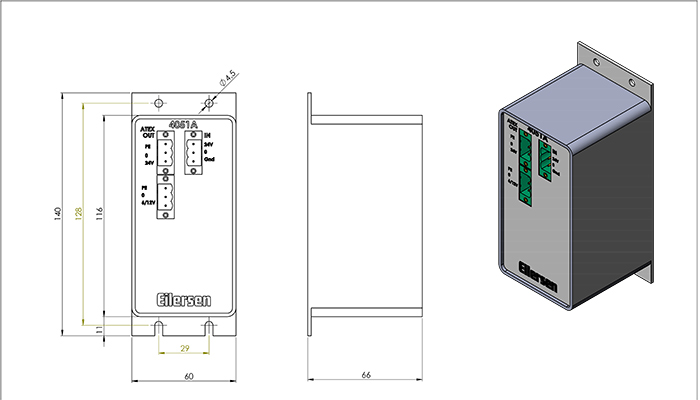

Dimensions (mm)

Specifications
Parameter Unit Data
Input   24Vdc ±5%, min. 2A
Output   Safe ATEX power supply for 4XXXA modules
Standard Power Supply Vdc 24Vdc ±5%, min. 2A
Operating temperature range °C 5 to 50
Weight kg 0.7
Housing   Anodized Aluminium
Mounting   Mounting base or DIN rail
Applications



Link til PDF-fil

Options
  • Prepared for panel mounting on DIN rail
  • Mounted in stainless steel housing
  • OEM version
