Eilersen 4X40A RS485 load cell interface module

ATEX Serial Interface Module 4X40A

ATEX and IECEx certified (zone 1, 2, 21, 22) RS485 interface module for directly interfacing up to four digital ATEX / IECEx load cells via RS485. The interface module type 4X40A can also be used in non-ATEX installations

Type:

4140A, 4240A, 4340A, 4440A

Interface:

RS485

Special Features
Documentation
Dimensions (mm)
Specifications
Applications
Options
Special Features
  • Made in Denmark
  • RS485 output
  • Weighing module for up to 4 digital load cells
  • For ATEX / IECEx and non-ATEX applications
  • Plug-and-play installation with Eilersen digital load cells
  • Advanced digital filters (configurable)
  • Small Form Factor
  • A ”Digital Junction Box” that can be mounted near the load cells or in a central panel
  • Setup via dip switches
  • For ATEX / IECEx when supplied by power supply type 4051A
  • The power supply 4051A and module type 4X40A must be installed outside the hazardous zone
  • Application software can be made by request

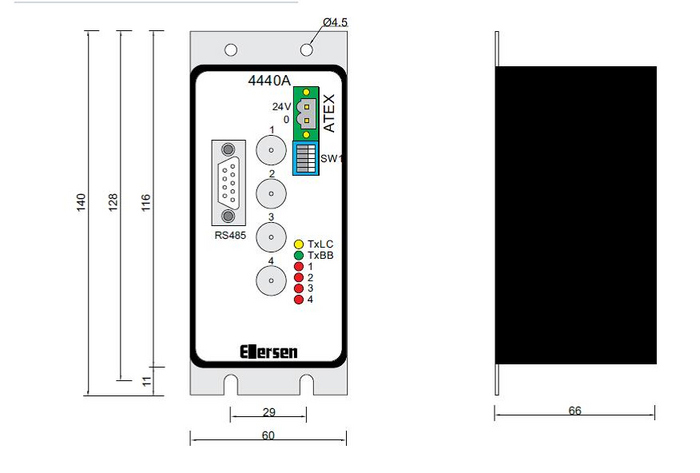

Dimensions (mm)

Specifications
Parameter Unit Data
Input   Up to 4 digital load cells
Output   RS485
Non-ATEX: Standard Power Supply Vdc 24Vdc ±5%, min. 2A
ATEX: Safe Power Supply Vdc ATEX certified Power Supply type 4051A
Operating temperature range °C 5 to 50
Weight kg 0.5
Housing   Anodized Aluminium
Mounting   Mounting base or DIN rail
Applications



Link til PDF fi

Options
  • Prepared for panel mounting on DIN rail
  • Mounted in stainless steel housing
  • Customized application software
  • OEM version
