Beam Load Cell BM (BM-Ex) 70

Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. The BM-Ex 70 load cell can be used in ATEX (Ex) IECEx and non-ATEX applications


BM 70 (Non-ATEX) BM-Ex 70 (ATEX)

Overload Tolerance:

Up to 500% of rated capacity

Special Features

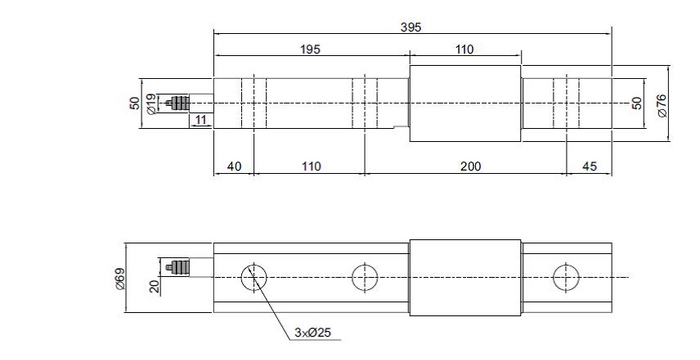

Dimensions (mm)
Special Features
  • Made in Denmark
  • ATEX and IECEx certified (Zone 1, 2, 21, 22)
  • Stainless steel 1.4542 (17-4 PH)
  • Robust capacitive technology
  • High tolerance of up to 1.000% overload
  • Hermetically sealed to IP68
  • Laser welded with Duplex 1.4462 stainless steel
  • High accuracy, High resolution
  • Can be supplied with Mud resistant and Halogen free cables for offshore installation
  • Digital filters
  • Cable length up to 100meters
  • Capacity (Emax): 1000, 2000, 3000kg
  • Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
  • Calibration independent of cable length
  • Load cell cable replaceable
  • Easy mechanical and electrical installation
  • Withstands welding voltages and ESD
  • Can be used in both ATEX / IECEx and non-ATEX installations
  • Examples Heavy Duty Digital Beam Load Cells
Dimensions (mm)


  • Dynamic weighing
  • Process weighing
  • Mobile weighing
  • Vibration feeders
  • Big-bag equipment
  • Hopper scales
  • Conveyor scales
  • Heavy duty platform scales
  • Heavy duty applications
  • Offshore applications


  • ATEX and IECEx (Zone 1, 2, 21, 22) version type BM-Ex
  • ATEX II 2G Ex ia IIC T6 Gb / ATEX II 2D Ex IIIC T85°C Db
  • Mounting kits available
  • Customized versions available
  • Load cell cable length 10, 20, 50 or 100meters
  • Mud resistant and Halogen free cables for offshore installation
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
