Beam Load Cell SDM80

Robust digital heavy duty beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. OIML certified (up to C5) according to R60

Type:

SDM80

Overload Tolerance:

Up to 500% of rated capacity

Special Features
Documentation
Dimensions (mm)
Specifications
Options
Special Features
  • Made in Denmark
  • Stainless steel 1.4542 (17-4 PH)
  • Robust capacitive technology
  • Patented high reliability capacitive sensor
  • OIML R60 accuracy classes up to C5
  • High tolerance of up to 1.000% overload
  • Hermetically sealed to IP68
  • Laser welded with Duplex 1.4462 stainless steel
  • High accuracy, High resolution
  • Digital filters
  • Capacity (Emax): 5000, 6000, 7000kg
  • Accuracy: Industrial 0.10% up to OIML class C5
  • Cable length up to 100meters
  • Calibration independent of cable length
  • Load cell cable replaceable
  • Easy mechanical and electrical installation
  • Withstands welding voltages and ESD

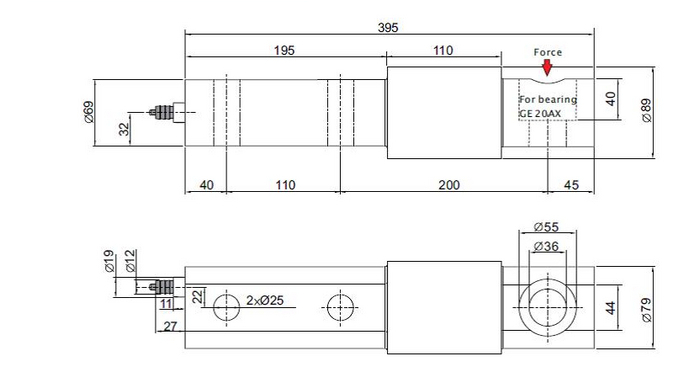

Dimensions (mm)

Specifications

Applications
  • Dynamic weighing
  • Process weighing
  • Mobile weighing
  • Vibration feeders
  • Big-bag equipment
  • Hopper scales
  • Conveyor scales
  • Heavy duty platform scales
  • Heavy duty applications
  • Offshore applications



Options
  • Mounting kits available
  • Customized versions available
  • Load cell cable length 10, 20, 50 or 100meters
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
