Hygienic Scales

Eilersen has developed a range of robust floor and pit scales featuring a hinged gas lift load plate for easy washdown in hygienic applications. Scales integrated in the production process have to meet the requirements to hygiene while being so robust that a forklift can drive into or over the scale without damaging the load cells. Furthermore the scale must to be very safe and easy to clean. The new range of hygienic and robust IP68 rated scales from Eilersen fulfills these requirements

Type:

Hygienic Scales

Interface:

EtherNet/IP, PROFINET, EtherCAT, Modbus TCP/IP, Profibus DP, DeviceNet, RS485, 4-20mA, or 0-10Vdc interface

Capacity (Emax):

Up to 5000kg

Overload Tolerance:

Up to 300%

Options:

  • Specific dimensions, range and materials
  • Local indicator and/or direct interface to PC, PLC or SCADA systems
  • Certified versions for legal for trade
Special Features
Documentation
Dimensions (mm)
Specifications
Applications
Options
Special Features
  • Made in Denmark

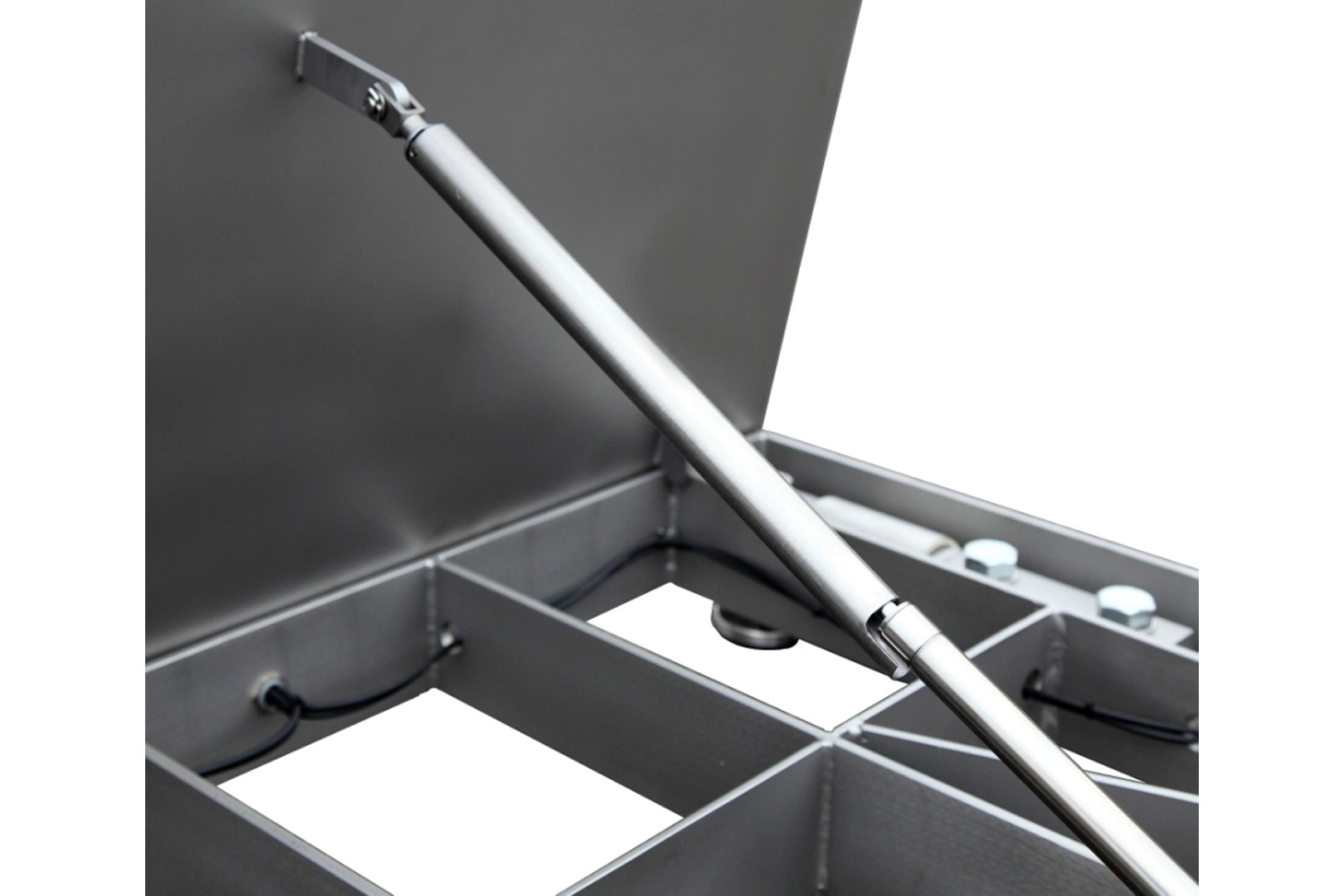

  • Hinged gas lift load plate for or easy washdown in hygienic applications

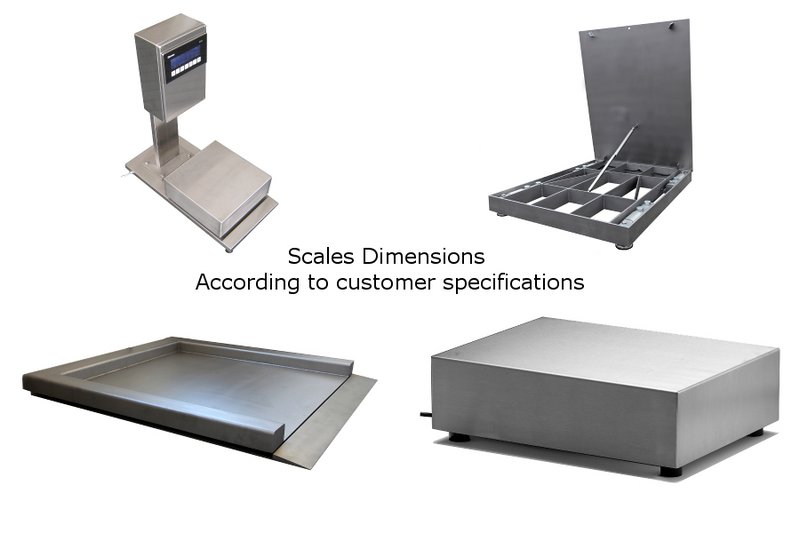

  • Dimensions, range and materials (e.g. AISI304 or 316, epoxy coating etc.) according to customer specifications,
  • Robust capacitive technology

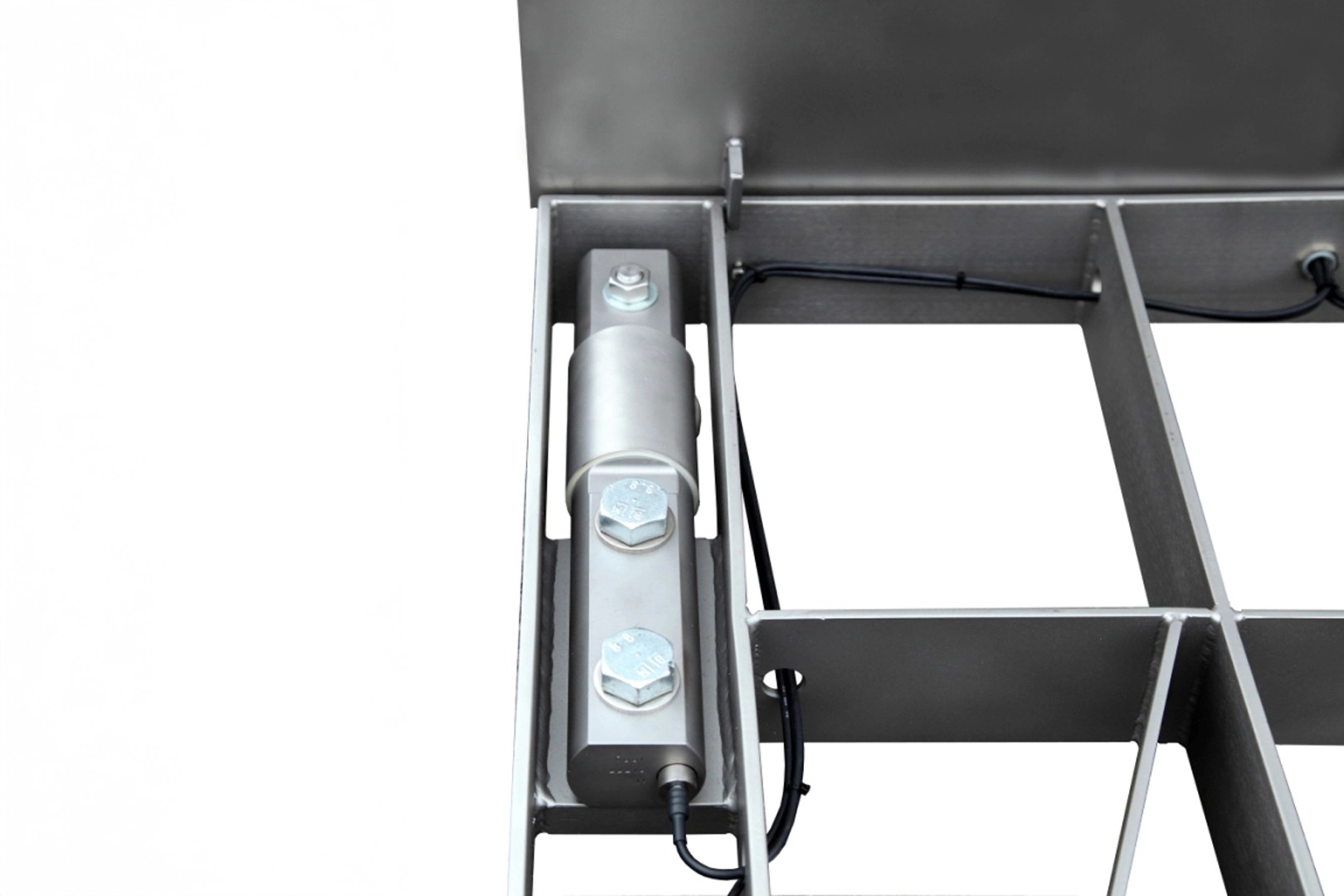

  • Patented high reliability capacitive sensor (IP68)
  • High tolerance of up to 1000% overload
  • High accuracy and high resolution
  • Digital filters for reducing the influence from vibrations,
  • Cable length up to 100meters
  • Scale calibration is independent of cable length
  • A range of software modules for standard weighing, special purposes, and customer specific applications
  • The status of each load cell in the scale can be monitored allowing for easy maintenance,
  • Local indicator and/or direct EtherNet/IP, PROFINET, EtherCAT, Modbus TCP/IP, Profibus DP, DeviceNet, RS485, 4-20mA, or 0-10Vdc interface
Dimensions (mm)

Heavy duty hygienic scale with very high overload tolerance

Specifications

Applications
  • Robust reliable hygienic floor and pit scales for food and pharmaceutical installations
Options
  • Specific dimensions, range and materials
  • Local indicator and/or direct interface to PC, PLC or SCADA systems
  • Certified versions for legal for trade
