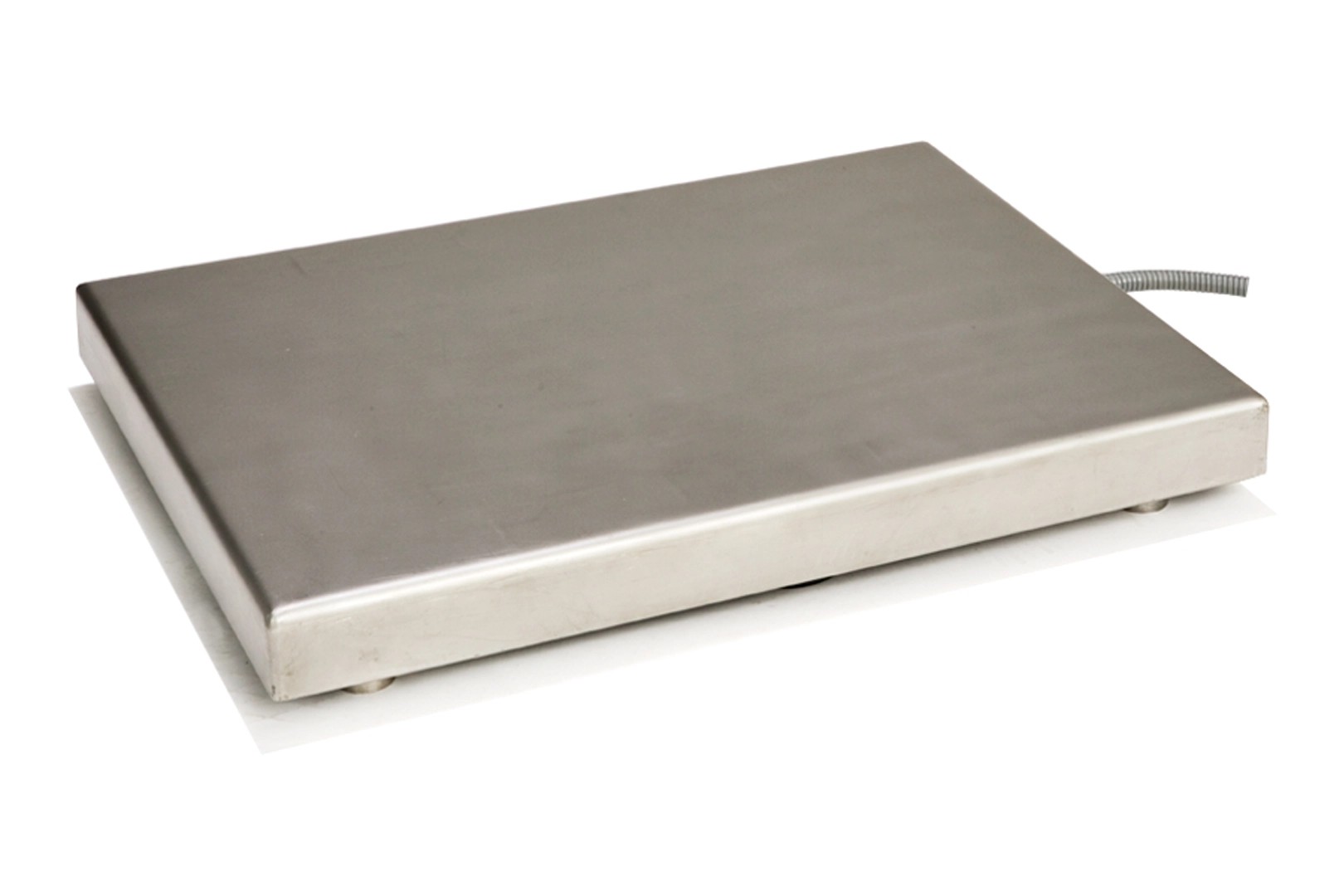

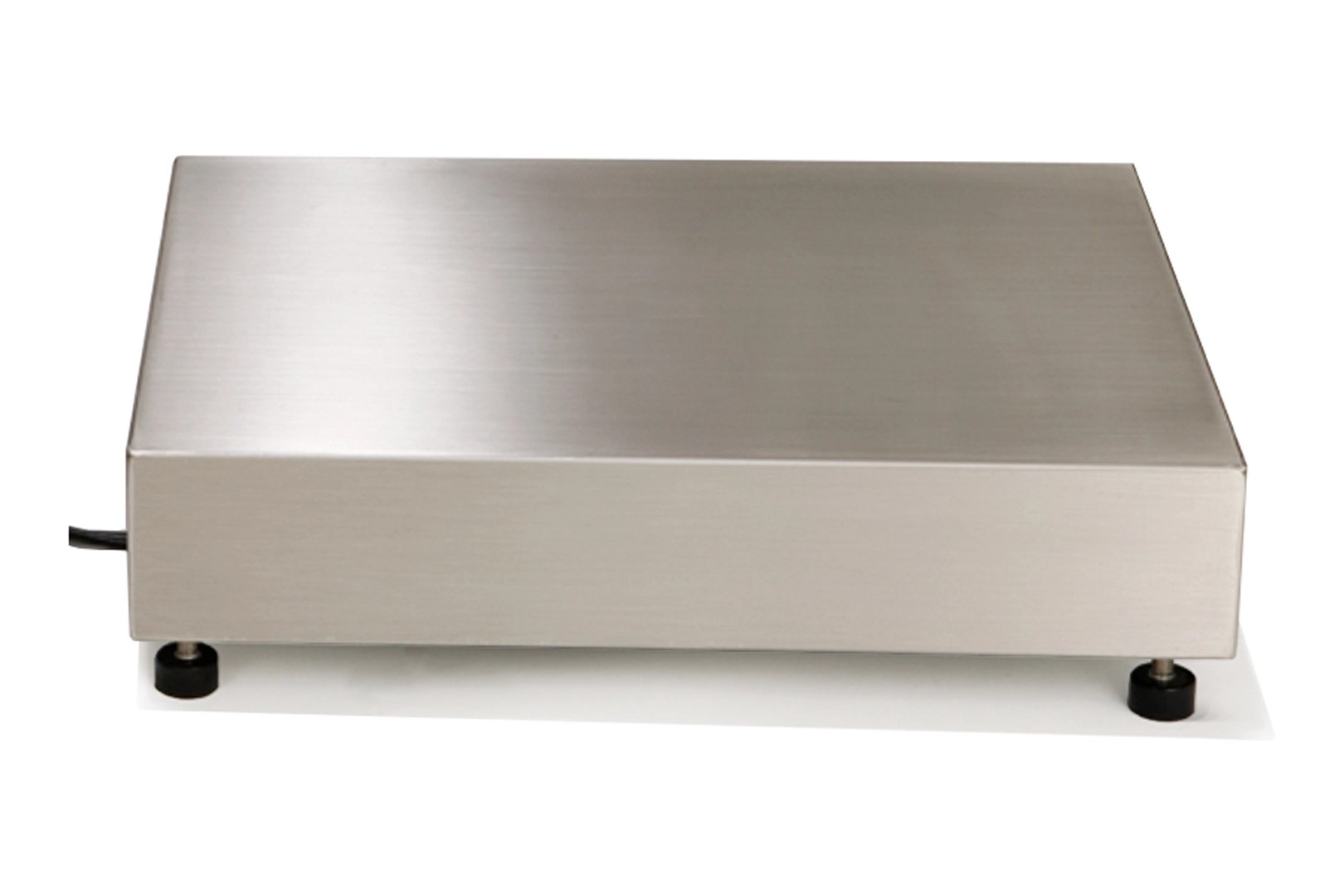

Platform Scales

Eilersen robust low profile platform scales are used in wet and tough environments with overloads, vibrations, high humidity and corrosion where high accuracies are required. The platform scales are maintenance-free and fulfil the protection degree IP68

Type:

Platform Scales

Interface:

Profibus DP

Capacity (Emax):

Up to 5000kg

Overload Tolerance:

Up to 1000%

Options:

  • Specific dimensions, range and materials
  • Local indicator and/or direct interface to PC, PLC or SCADA systems
  • Certified versions for legal for trade
Special Features
Documentation
Dimensions (mm)
Specifications
Applications
Options
Special Features
  • Made in Denmark

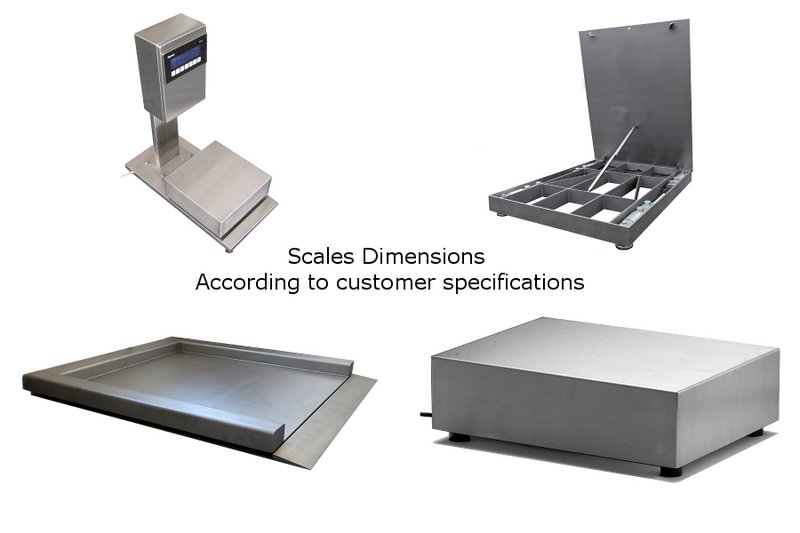

  • Dimensions, range and materials (e.g. AISI304 or 316, epoxy coating etc.) according to customer specifications
  • Robust capacitive technology
    Patented high reliability capacitive sensor (IP68)
  • High tolerance of up to 1000% overload
  • High accuracy and high resolution
  • Digital filters for reducing the influence from vibrations
  • Cable length up to 100meters
  • Scale calibration is independent of cable length
  • A range of software modules for standard weighing, special purposes, and customer specific applications
  • The status of each load cell in the scale can be monitored allowing for easy maintenance
  • Local indicator and/or direct EtherNet/IP, PROFINET, EtherCAT, Modbus TCP/IP, Profibus DP, DeviceNet, RS485, 4-20mA, or 0-10Vdc interface
  • Can be supplied with ramps or for installation in a pit
  • Ultra low profile version available
Dimensions (mm)

Heavy duty Platform Scale with capacity up to 20000kgRobust platform scale designed for high overloads for installation in tough environments

Specifications

Applications
  • Reliable platform scales for industrial installations
Options
  • Specific dimensions, range and materials
  • Local indicator and/or direct interface to PC, PLC or SCADA systems
  • Certified versions for legal for trade
