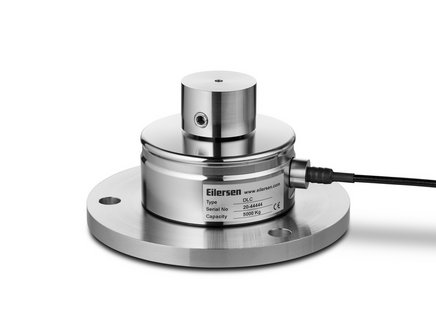

Compression Load Cell DLC (DLC-Ex)

Capacitive load cells with integrated lift-off protection (Patent Pending) for installations e.g. in areas with seismic activity, outdoor silos and high shear mixers. These robust digital compression load cells in EHEDG compliant design are produced in electropolished stainless steel and hermetically sealed to IP68. The load cells type DLC-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22)

Type:

DLC (Non-ATEX) DLC-Ex (ATEX)

Capacity (Emax):

50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000kg

Accuracy:

Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload Tolerance:

Up to 300% of rated capacity

Special Features
Documentation
Dimensions (mm)
Specifications
Applications
Options
Special Features
  • Compression load cell with integrated lift-off protection (Patented Load Cell Design)
  • EHEDG compliant hygienic (aseptic) design without gaps or edges for easy cleaning to minimize the risk of bacteria growth
  • Developed and manufactured in Denmark
  • Low profile and hygienic design
  • High tolerance of up to 1000% overload
  • Robust capacitive technology
  • Hermetically sealed to IP68
  • Electropolished stainless steel 1.4542 (17-4 PH)
  • Laser welded with Duplex 1.4462 stainless steel
  • ATEX and IECEx certified (Zone 1, 2, 21, 22)
  • Easy mechanical and electrical installation
  • High accuracy, High resolution
  • Capacity (Emax): 50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000kg
  • Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
  • Load cell cable length up to 100meters
  • Load cell calibration independent of cable length
  • Load cell cable replaceable on-site
  • Withstands welding voltages and ESD
  • Can be used in both ATEX / IECEx and non-ATEX installations
  • Can be supplied with Mud resistant and Halogen free cables for offshore installation
Dimensions (mm)

Specifications

Parameter Unit 0.10% 0.05% 0.025%
Rated capacity (Emax) kg 50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000
Safe overload limit (compression) % of Emax 300
Safe overload limit (tension/lift-up) % of Emax 300
Safe sideload limit (tension or compression) % of Emax 300
Combined accuracy % of Emax 0.100 0.050 0.025
Repeatability % of Emax 0.030 0.025 0.020
Hysteresis % of Emax 0.055 0.040 0.020
Creep 30 min. % of Emax 0.060 0.040 0.040
Temperature effect on zero % /10°C 0.060 0.055 0.055
Temperature effect on sensitivity % /10°C 0.060 0.055 0.055
Compensated temperature range °C -10 to 50
Operating temperature range °C -50 to 70 (100*)
Deflection at Emax mm 0.10
Measuring rate Hz 500
Supply Vdc 24Vdc ±5%
Internal resolution Bit 24
Material   Stainless Steel 17-4 PH and AISI 316
Protection   IP68
Cable   6meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum cable length m 100
Weight kg 4.0 **
Output options   EtherNet/IP, PROFINET, EtherCAT, Profibus DP, Modbus TCP/IP,
DeviceNet, RS485/422, 4-20mA, 0-10Vdc
* with Teflon cable
** including base plate
Applications
  • Outdoor silos
  • Tank weighing
  • Process weighing
  • High shear mixers
  • Big-bag equipment
  • Filling and dosing
  • Offshore
  • Installations in seismic area
  • Level measurement
  • Platform scales
  • Hopper scales
  • Heavy duty applications
  • Belt scales
Options
  • ATEX and IECEx (Zone 1, 2, 21, 22) version type DLC-Ex
  • ATEX II 2G Ex ia IIC T6 Gb / ATEX II 2D Ex ia IIIC T85°C Db
  • Standard base plate available
  • Mounting top
  • Customized top
  • Tank leg (different dimensions)
  • Load cell cable length 10, 20, 50 or 100meters
  • Mud resistant and Halogen free cables for offshore installation
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
