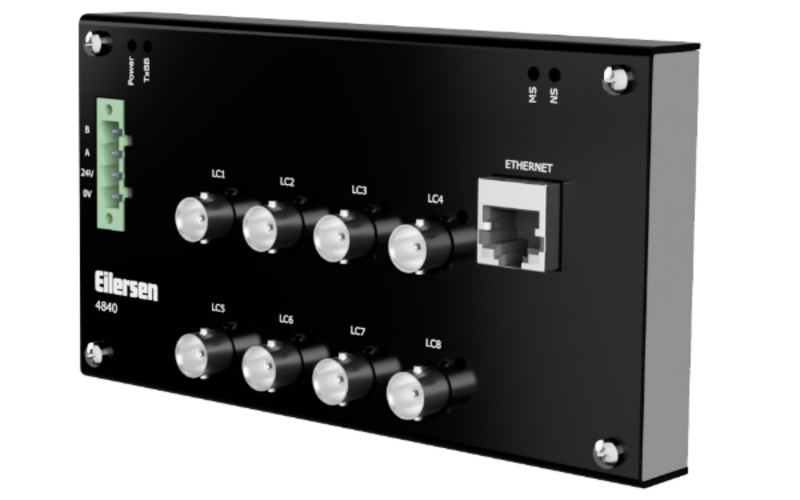

OEM Weighing Module 4840OEM

OEM weighing module for interfacing up to 8 digital load cells to PLCs, PCs etc. The module offers serial RS485, Modbus TCP/IP and EtherNet IP interfaces. This weighing module is developed for OEM use and can be equipped with customized protocols. The module communicates weight, status and diagnostics for each individual load cell connected to the weighing module.

Type:

4840OEM

Interface:

RS485, Pending: EtherNet TCP/IP, EtherNet IP, Modbus TCP/IP, PROFINET

Print datasheet

Special Features

Documentation

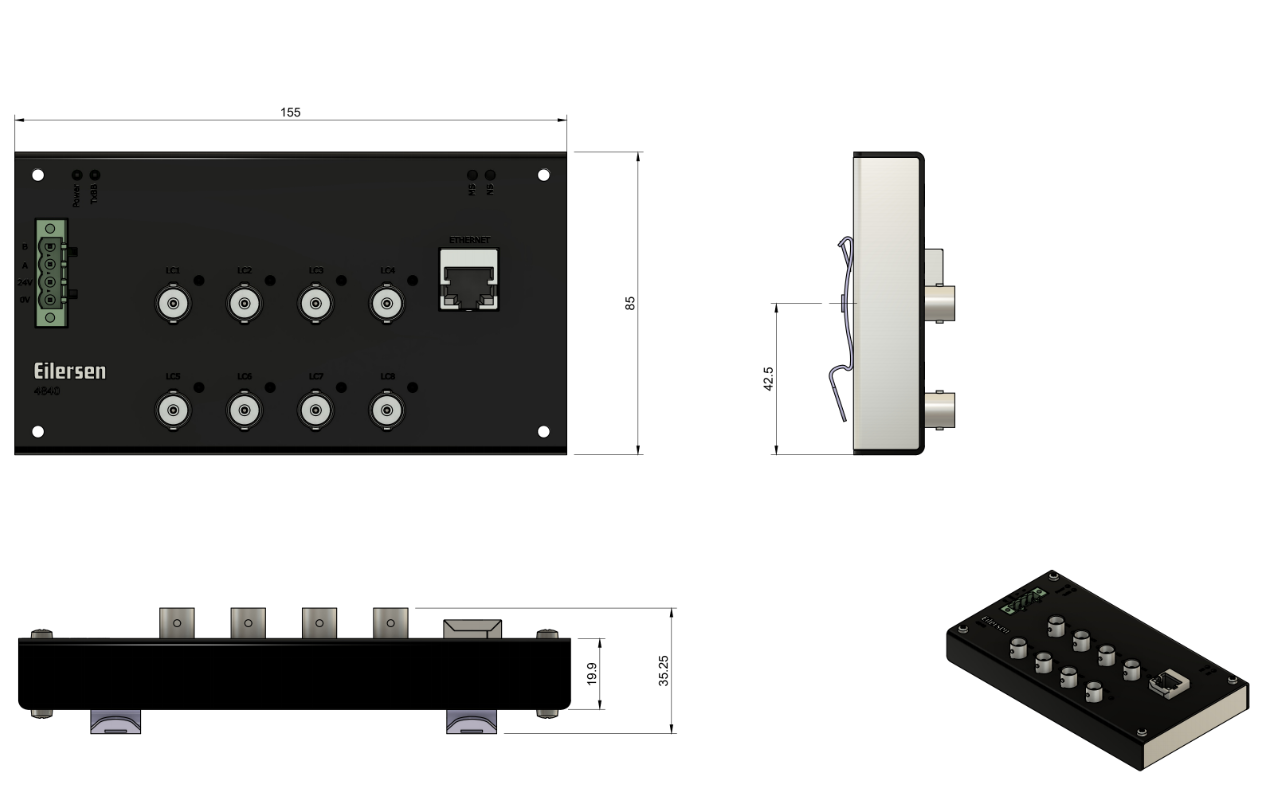

Dimensions (mm)

Specifications

Options

Made in Denmark
Interfaces: RS485, Pending: Ethernet TCP/IP, EtherNet IP, Modbus TCP/IP, PROFINET
Weighing module for up to 8 digital load cells
Plug-and-play installation with pre-calibrated digital load cells

Application software can be made by request
Connectors for up to 8 digital load cells and power supply 24Vdc, min. 3A

Parameter	Unit	Data
Input		Up to 8 digital load cells
Output		RS485 Pending: Ethernet TCP/IP, EtherNet IP Modbus TCP/IP, PROFINET
Power Supply	Vdc	24Vdc ±5%, min. 3A
Operating temperature range	°C	5 to 50
Weight	kg	0.5
Housing		Anodized Aluminium
Mounting		DIN rail
