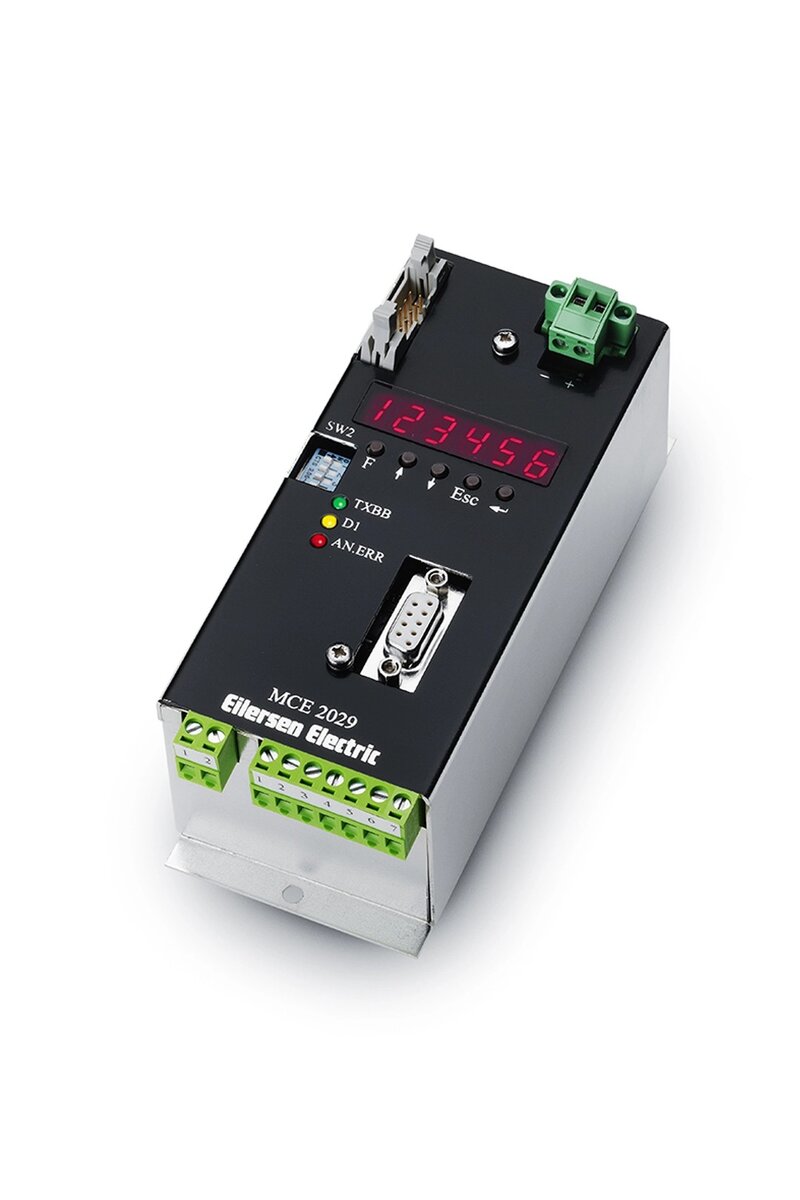

Analog Output Module MCE2029

Analog output weighing module featuring a small LED display, 4-20mA or 0-10Vdc active output and RS485 interface. The module also features four I/O for level alarms and remote zeroing. This module can be used for up to eight digital non-ATEX load cells. The module type MCE2029 can also be used in ATEX applications when connected to an ATEX 4X40A interface module




Analog output (4-20mA or 0-10Vdc active output) and RS485 interface

Special Features
Dimensions (mm)
Special Features
  • Made in Denmark
  • Analog 4-20mA or 0-10Vdc ACTIVE output
  • Digital RS485 serial communication
  • Six character LED display
  • 2 digital inputs + 2 digital outputs
  • Can be used for up to 8 digital load cells
  • Shows the weight on each of the load cells
  • Shows the summed weight for all the load cells
  • Configurable measuring time (40 ms -> 4 seconds)
  • 16bit D/A converter
  • 3 different FIR filters selectable by dip switches
  • Plug-and-play installation with pre-calibrated digital load cells
  • Input for zeroing
  • Setup via keys and dip switches
  • Application software can be made by request

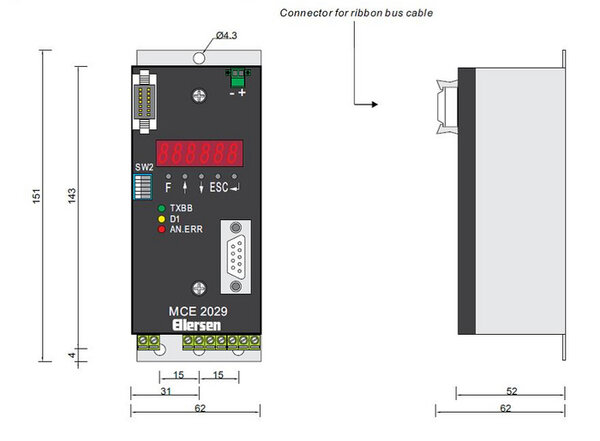

Dimensions (mm)




Link til PDF fi

  • Prepared for panel mounting on DIN rail
  • Mounted in stainless steel housing
  • Customized application software
  • OEM version
